Specifications:

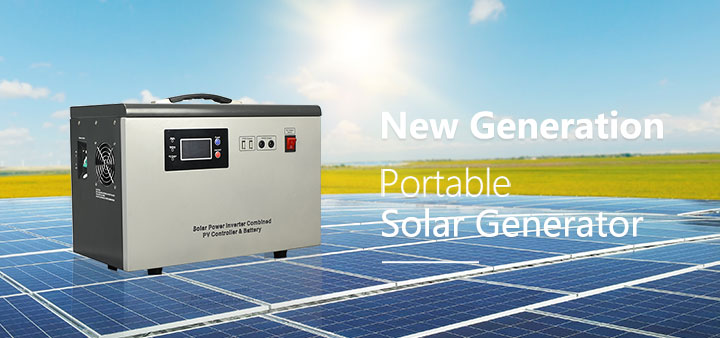

New Generation Portable Solar Generator
The Product Specification
Model MPSG-500W MPSG-1000W
Battery Rated Voltage 12V 24V
INVERTER
RATED POWER 500W 1000W
Input Voltage Range 160-275V
Input Frequency 45-65Hz
Output Voltage 220VAC
Output Frequency 50/60Hz
Output Wave Sine Wave
Specification Of Built-in Lithium Battery 50AH 100AH
Communication RS232
SOLAR INPUT
Solar Panel Rated Power 240W 480W
Max. PV Voltage ≤25VDC ≤50VDC
Range Of Charging Voltage 10-25VDC 20-50VDC
Rated Charge Current 20A(MPPT)
Voltage For Overcharge Protection 14.2VDC 28.4VDC
Voltage For Overcharge Recovery 14VDC 28VDC
Voltage For Floating Charge 13.7VDC 27.4VDC
DC OUTPUT
Voltage For High Voltage Protection 16VDC 32VDC
High Voltage Recovery Voltage 15.2VDC 30.2VDC
Low Voltage Recovery Voltage 12.6VDC 25.2VDC
Low Voltage Protection Voltage 11VDC 22VDC
5VDC USB Output 2Pieces /MAX 2A
12VDC Output Ports 2Pieces /MAX 2A
PHYSICAL
Heat Dissipation/Cooling Temperature control by intelligent exhaust fan
Display Digital LCD Digital LCD
Electricity Charging Yes Yes
External Size：W*D*H（mm） 420*220*270 430*230*320
Package Size：W*D*H（mm） 507*295*355 512*310*405
